The Pisound Micro provides flexible audio connectivity options through its ADAU1961 codec. This page explains how to configure and connect audio inputs and outputs to meet your specific requirements.

Overview#

Pisound Micro features multiple audio connection options that can be configured both physically and through software. Understanding these options will help you get the most out of your device.

Summary of Pin Usage#

Pisound Micro Audio Connections

Pin Default Function Alternate Function
A01 VGND (Headphone Virtual Ground) MONOOUT (Line Level)
A03 HPL (Headphone Left) -
A04 HPR (Headphone Right) -
A07 LINE_OUT_L- (Output) -
A08 LINE_OUT_L+ (Output) Single-Ended Output Left
A09 LINE_OUT_R- (Output) -
A10 LINE_OUT_R+ (Output) Single-Ended Output Right
A13 LINE_IN_R- (Input) Single-Ended Input 3
A14 LINE_IN_R+ (Input) Single-Ended Input 4
A15 LINE_IN_L- (Input) Single-Ended Input 1
A16 LINE_IN_L+ (Input) Single-Ended Input 2

AGND (Analog Ground) for audio is available on these pins: A02, A05, A06, A11, A12, A19 and A20.

Connection Options at a Glance#

Pisound Micro supports three main types of audio connections, each with multiple configuration options:

  • Headphone Output:

    • Capless configuration (default) - Direct headphone connections
    • External capacitor configuration - For connecting to other audio equipment
    • HP Line output configuration - Alternative line output option (external capacitor needed)
  • Line Input:

    • Differential input - Balanced stereo channels with superior noise immunity
    • Single-ended input - Four independent mono inputs
  • Line Output:

    • Differential output - Balanced output for professional applications
    • Single-ended output - Standard unbalanced stereo output

The following sections provide detailed information about each configuration option.

Headphone Output Configurations#

Pisound Micro offers three different configurations for the headphone output pins, allowing you to adapt to various audio connection scenarios.

Capless Headphone Configuration (Default)#

In the default configuration, the HPL (A03) and HPR (A04) pins provide stereo headphone output, while the VGND (A01) pin serves as a virtual ground. This eliminates the need for coupling capacitors and is ideal for most headphone applications.

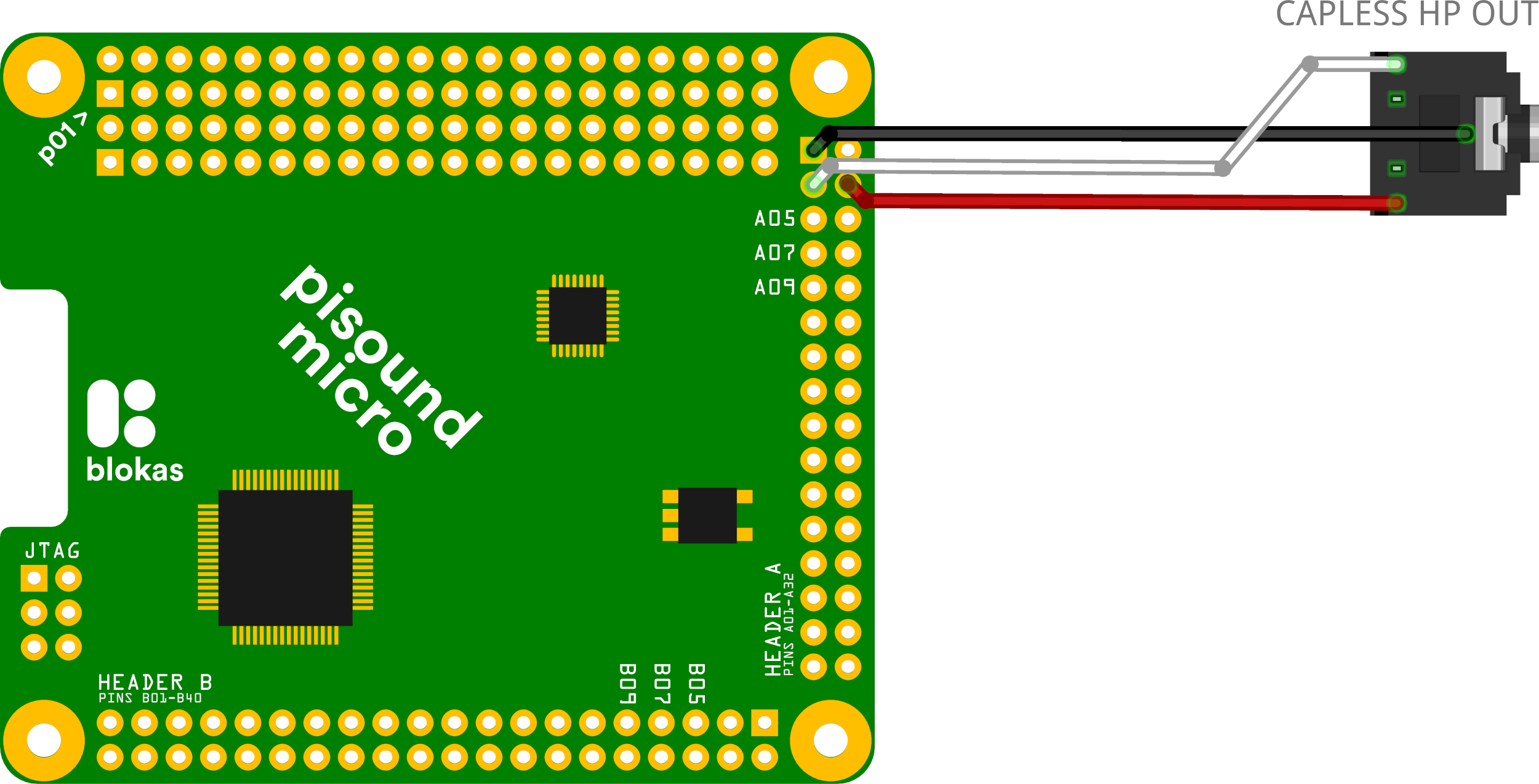

Capless Headphone Output

Wiring#

  • HPL (A03): Left channel
  • HPR (A04): Right channel
  • VGND (A01): Virtual ground

Use hp-out-mode=capless-headphone dtoverlay parameter (or omit, as it is the default value).

Important Note#

This configuration is suitable only for headphone connections. Do not use it to interconnect with other audio electronics (amplifiers, mixers, etc.) as the virtual ground system is incompatible with common ground devices. Improper connections can create ground loops, causing noise or potential damage.

For connecting to other audio equipment: Use the External Capacitor Configuration instead, which provides proper electrical isolation and prevents ground loops.

Safety Feature#

Pisound Micro includes automatic protection that mutes the capless headphone output if a ground loop is detected, protecting both the device and your connected equipment.

External Capacitor Configuration#

For connecting to external audio equipment, this configuration uses coupling capacitors with the HPL and HPR pins. This approach electrically isolates the Pisound Micro from other devices and allows the A01 pin to be repurposed as a line level MONOOUT.

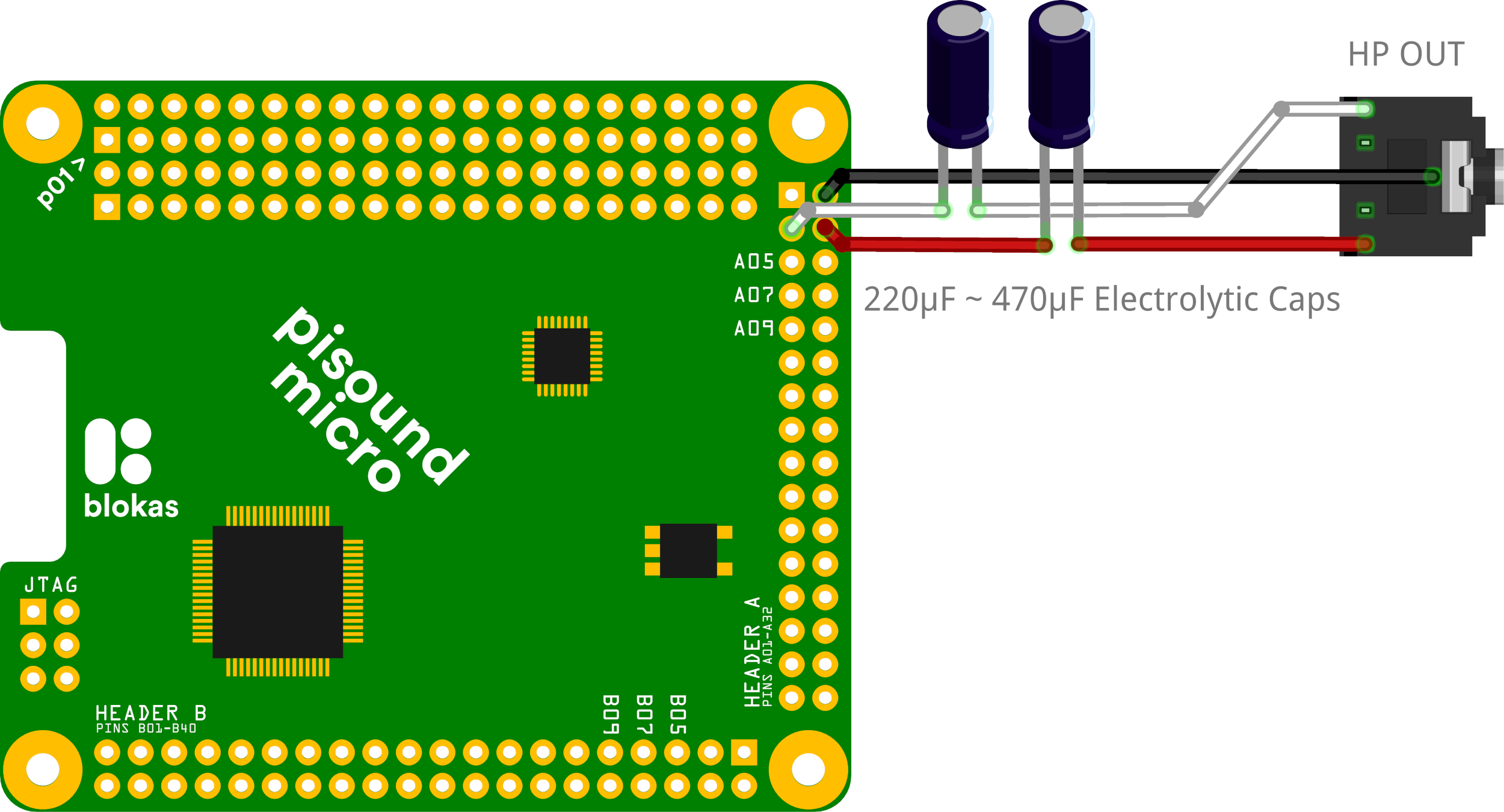

Headphone Output with Capacitors

Wiring#

  • HPL (A03): Left channel (via coupling capacitor)
  • HPR (A04): Right channel (via coupling capacitor)
  • A01 (Optional): MONOOUT line level mono output (can be left unconnected if unused)

Use hp-out-mode=headphone dtoverlay parameter.

Selecting Capacitors#

When choosing capacitors:

  • Capacitance Range: 220µF–470µF recommended
  • Type: Electrolytic capacitors (observe correct polarity)
  • Voltage Rating: 6V minimum, up to 25V recommended
  • Frequency Response: Capacitor forms a high-pass filter with headphone impedance
  • Cutoff Frequency Formula:

    f = 1/(2π × R × C)

    Where:

    • f is the cutoff frequency in Hz
    • π is 3.14159265358979323846264338...
    • R is the headphone impedance in ohms
    • C is the capacitance in farads
Impedance Minimum Recommended Capacitance Expected -3dB Cutoff Point
16Ω 330µF 30 Hz
32Ω 220µF 23 Hz
64Ω+ 100µF 25 Hz
1kΩ 8µF 20 Hz

For most applications, 220µF capacitors provide an excellent balance between performance, size, and cost.

HP Line Output Configuration#

The headphone pins can alternatively function as an additional line output for connecting to external amplifiers or audio equipment. This configuration requires external series capacitors for proper electrical isolation.

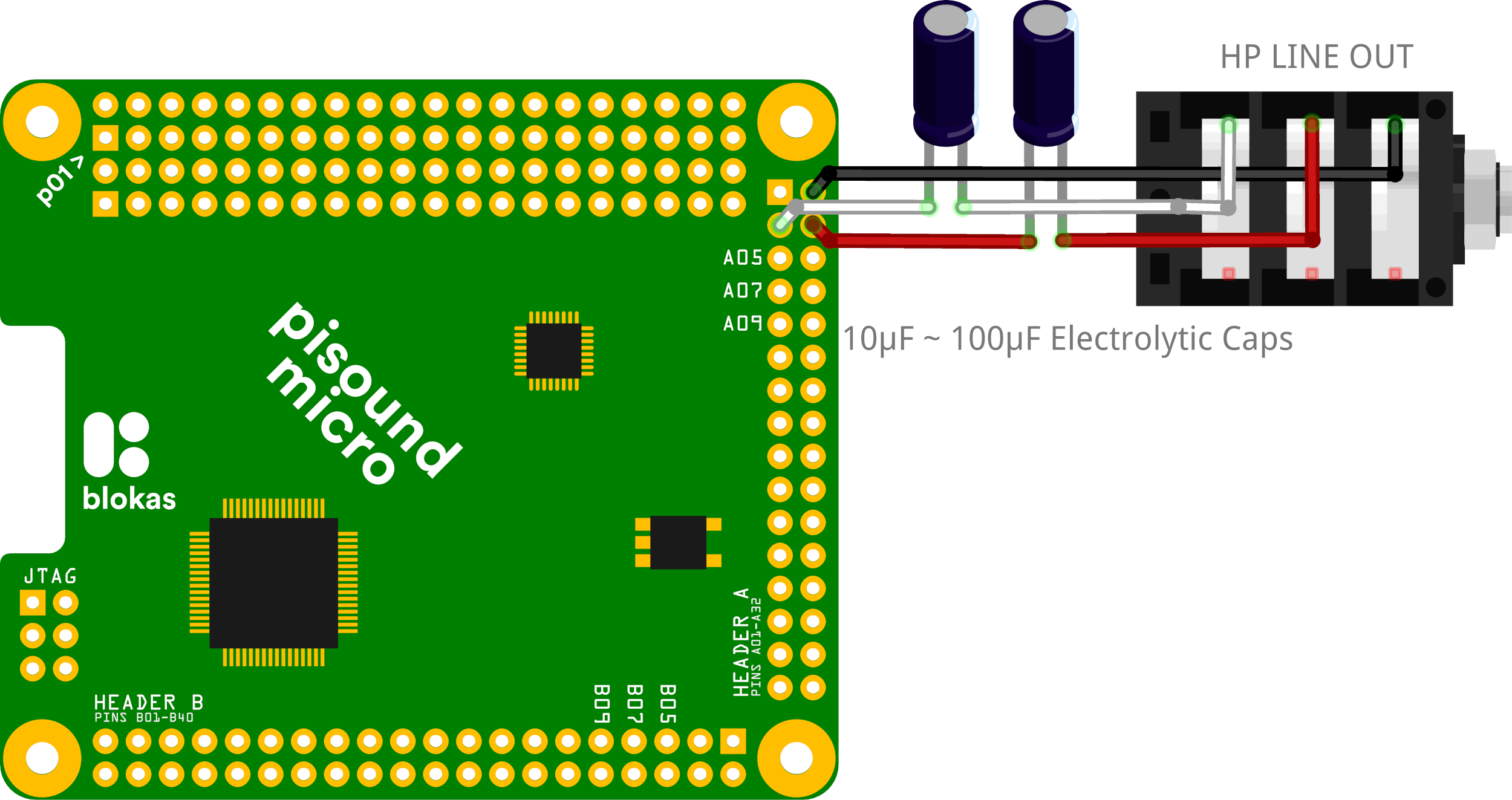

Headphone Line Output with Capacitors

Wiring#

  • HPL (A03): Line output left channel (via coupling capacitor)
  • HPR (A04): Line output right channel (via coupling capacitor)
  • AGND: Ground reference (use audio ground, not VGND)

For guidance on selecting appropriate capacitor values, refer to the Selecting Capacitors section.

Use hp-out-mode=line dtoverlay parameter.

Line Input Configurations#

The line input pins can be configured for differential or single-ended input. Additionally, the device supports microphone bias voltage (MicBias) for connecting condenser microphones without external power.

Differential Line Input#

The differential configuration uses:

  • A15 & A16: Differential Left channel (LINE_IN_L- and LINE_IN_L+)
  • A13 & A14: Differential Right channel (LINE_IN_R- and LINE_IN_R+)

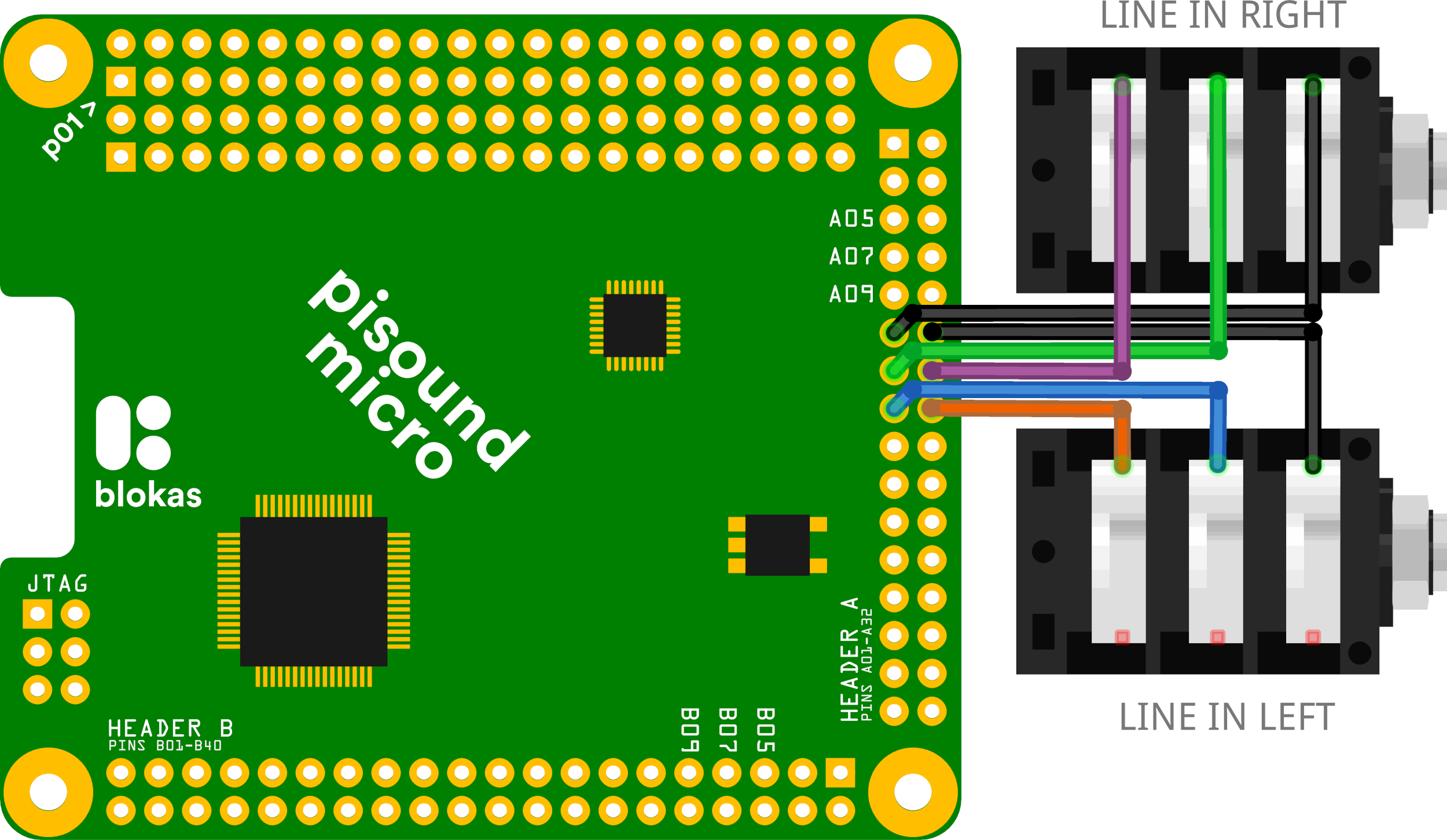

Differential Line Input

This balanced input configuration provides superior noise immunity and is ideal for professional audio connections or noisy environments.

Use input-mode=differential dtoverlay parameter (or omit, as it is the default value).

Single-Ended Line Input#

Alternatively, you can configure these pins as four separate single-ended inputs:

  • A15: Single-Ended Input 1 (LINE_IN_L-)
  • A16: Single-Ended Input 2 (LINE_IN_L+)
  • A13: Single-Ended Input 3 (LINE_IN_R-)
  • A14: Single-Ended Input 4 (LINE_IN_R+)

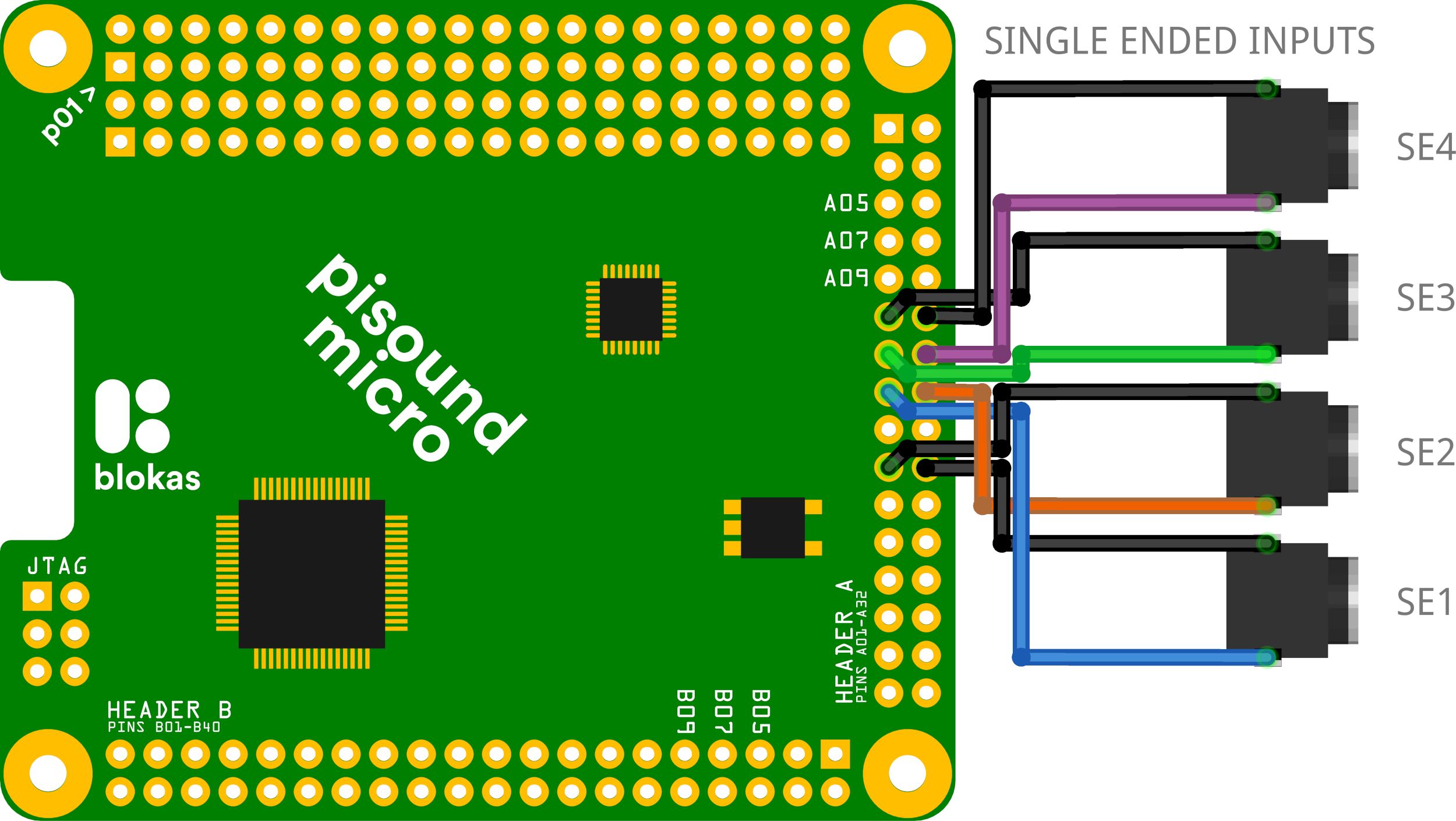

Single Ended Line Input

This allows connecting up to four mono audio sources simultaneously.

Note: When using single-ended inputs, properly terminate any unused inputs to prevent noise.

Use input-mode=single-ended dtoverlay parameter.

Mic Bias#

Pisound Micro includes a microphone bias voltage feature that can be enabled via the MicBias control in alsamixer. When activated, this provides a +3.3V bias voltage on the A16 (LINE_IN_L+) and A14 (LINE_IN_R+) pins through 1kΩ pull-up resistors. This feature is particularly useful for connecting electret condenser microphones and other microphone types that require an external voltage bias to operate. The bias voltage allows these microphones to function without needing separate power supplies or phantom power. Simply enable the MicBias control when connecting compatible microphones to these input pins.

Electret Condenser Microphone Input

Use input-mode=differential dtoverlay parameter (or omit, as it is the default value). Make sure MicBias is enabled in alsamixer.

Line Output Configurations#

Pisound Micro's line output pins support both differential and single-ended modes:

Differential Line Output#

Professional balanced output using:

  • A07 & A08: Differential Left (LINE_OUT_L- and LINE_OUT_L+)
  • A09 & A10: Differential Right (LINE_OUT_R- and LINE_OUT_R+)

This configuration offers the best noise rejection for professional applications.

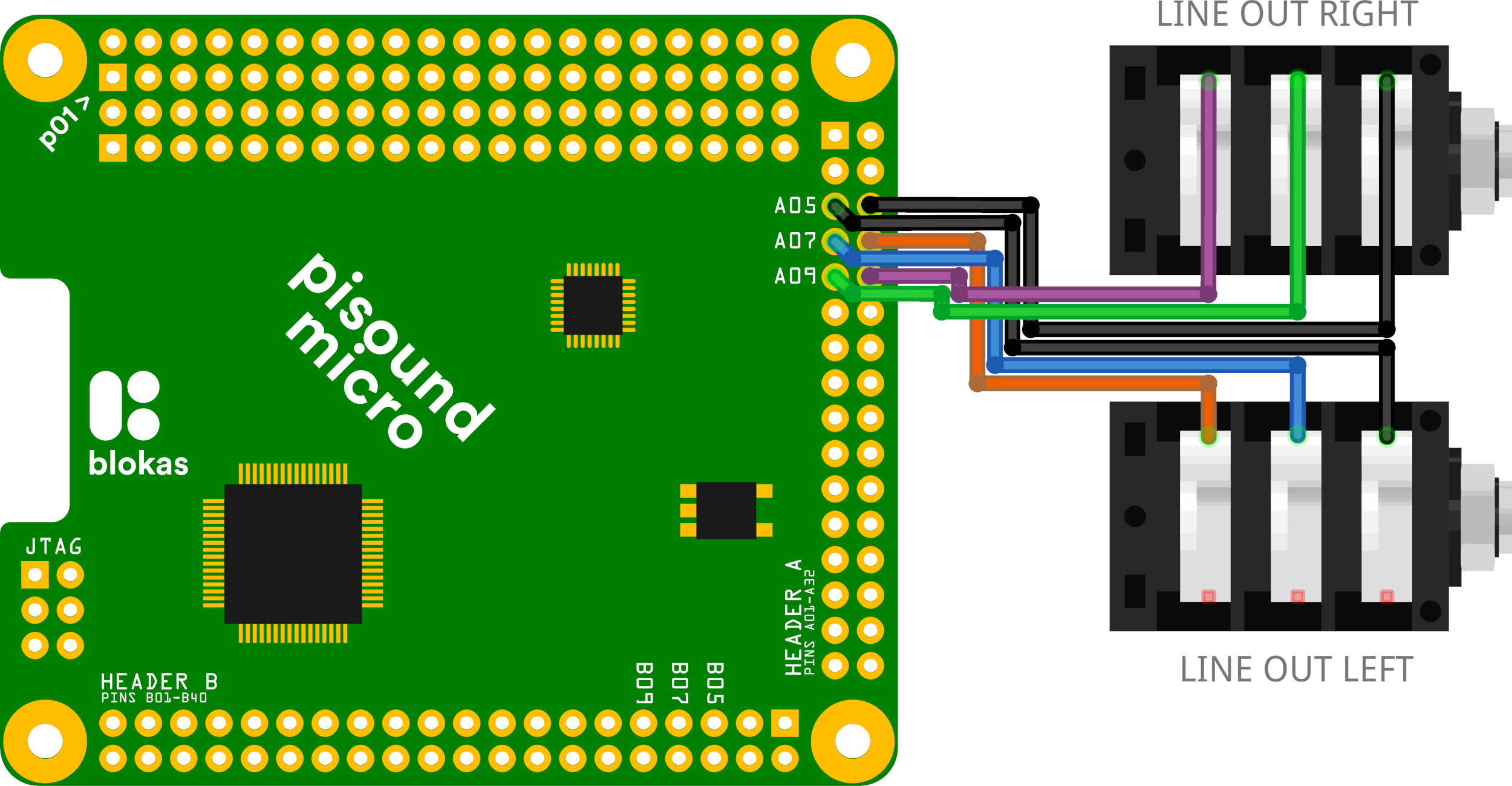

Differential Line Output

The Line Output can be switched between driving line (10kΩ) or headphone (16Ω - 32Ω) loads via line-out dtoverlay parameter described below.

Single-Ended Line Output#

Standard unbalanced stereo output:

  • A08: Left channel (LINE_OUT_L+)
  • A10: Right channel (LINE_OUT_R+)
  • AGND: Ground reference

This configuration is compatible with most consumer audio equipment.

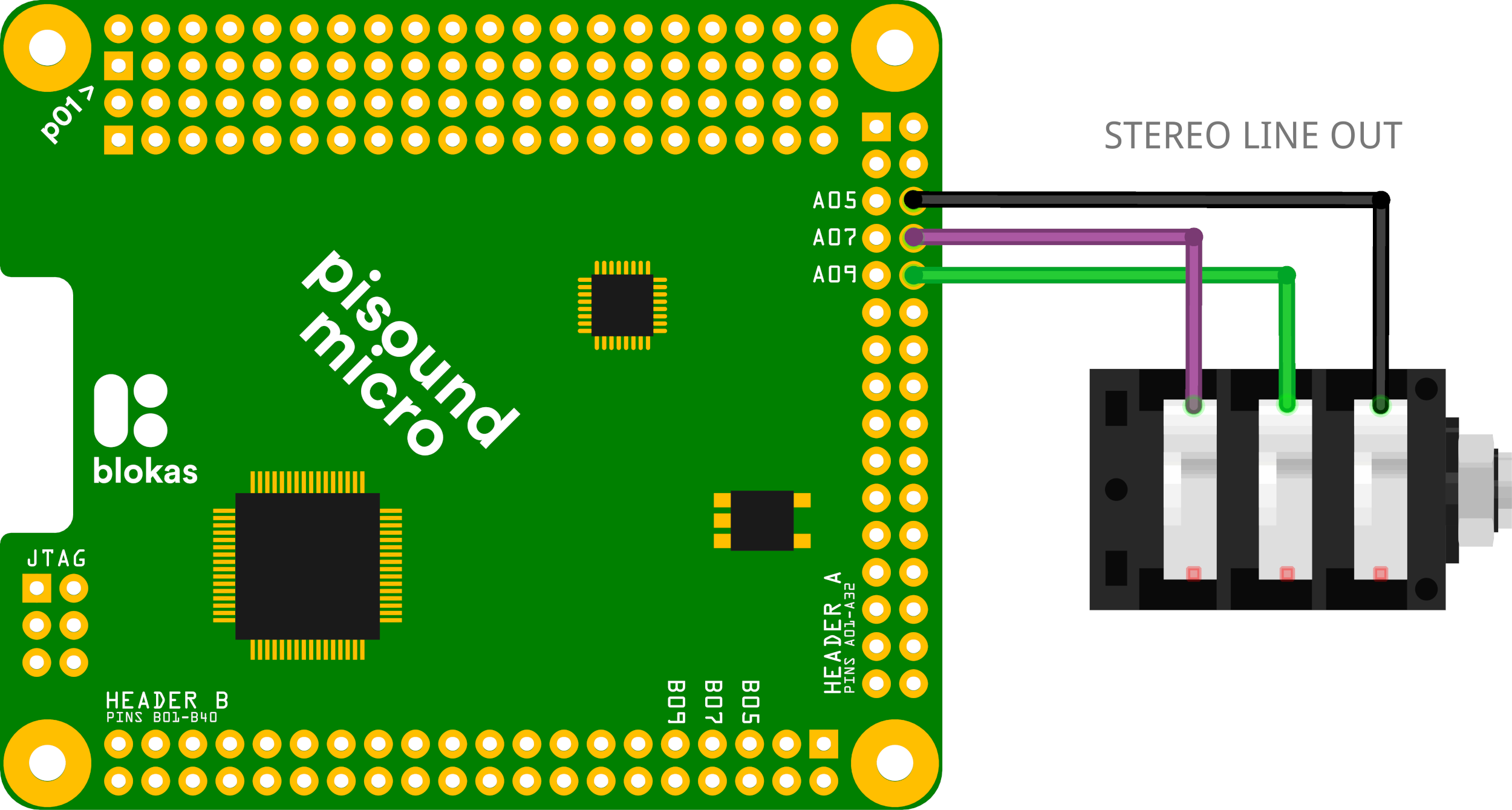

Single Ended Line Output

Software Configuration#

All audio configurations can be controlled through Device Tree overlay parameters in /boot/firmware/config.txt, allowing you to switch between modes without physical rewiring.

Configuration Parameters#

Parameter Values Description
input-mode differential, single-ended Line input configuration
hp-out-mode capless-headphone, headphone, line-out Headphone output configuration
line-out line-out, headphone Line output configuration

Note: Default values are marked in bold. The line output path includes 100μF capacitors on the board.

Setting Parameters#

Add or modify parameters in /boot/firmware/config.txt:

dtoverlay=pisound-micro,hp-out-mode=headphone,input-mode=single-ended

Parameters can be combined as needed or omitted to use defaults.

Common Configuration Examples#

  1. Default Configuration:

    dtoverlay=pisound-micro

    Uses capless headphone output, differential inputs, and standard line outputs.

  2. Isolated Headphone Output and Multiple Input Sources:

    dtoverlay=pisound-micro,hp-out-mode=headphone,input-mode=single-ended

    Sets up headphone output with external capacitors for isolation and four single-ended inputs while keeping default line output settings.

  3. Additional Line Output:
    dtoverlay=pisound-micro,hp-out-mode=line-out

    Repurposes the headphone output as an additional line output.

After changing parameters, restart your Raspberry Pi for the changes to take effect.
